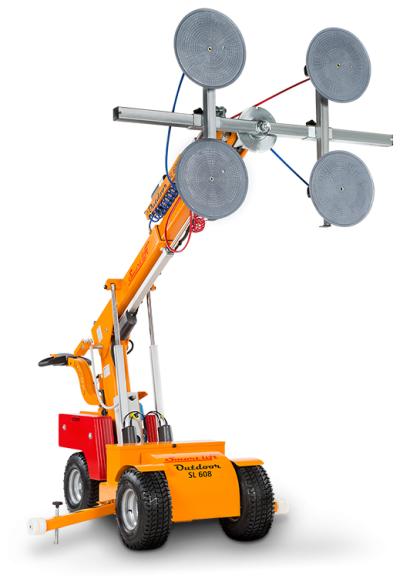

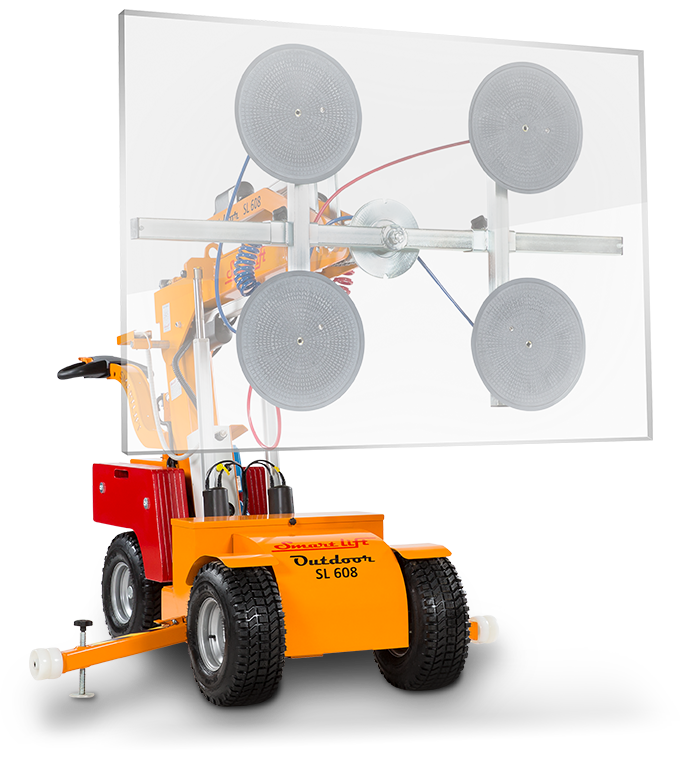

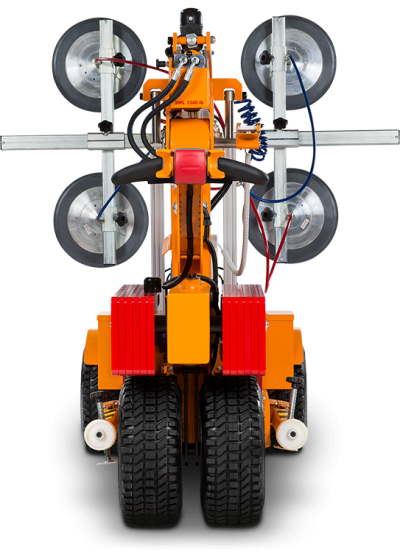

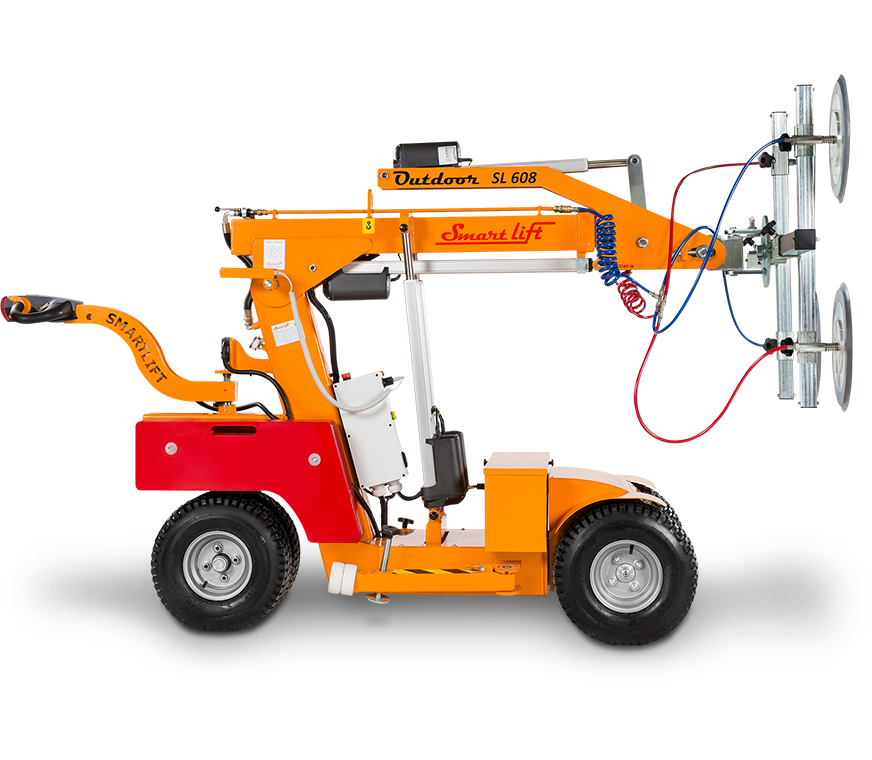

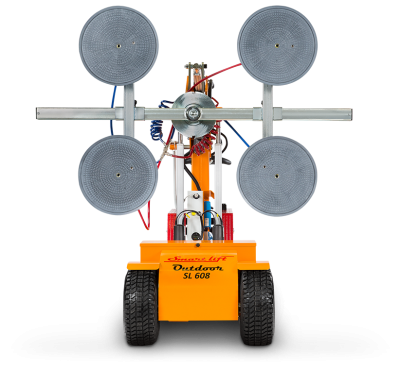

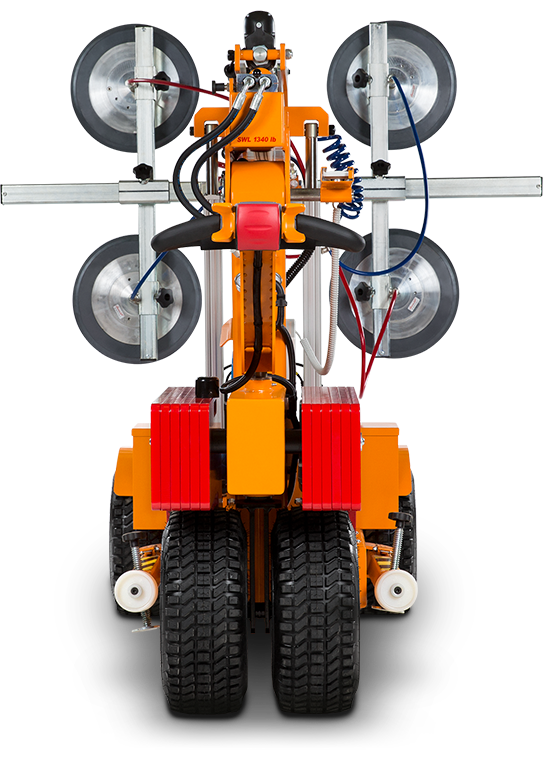

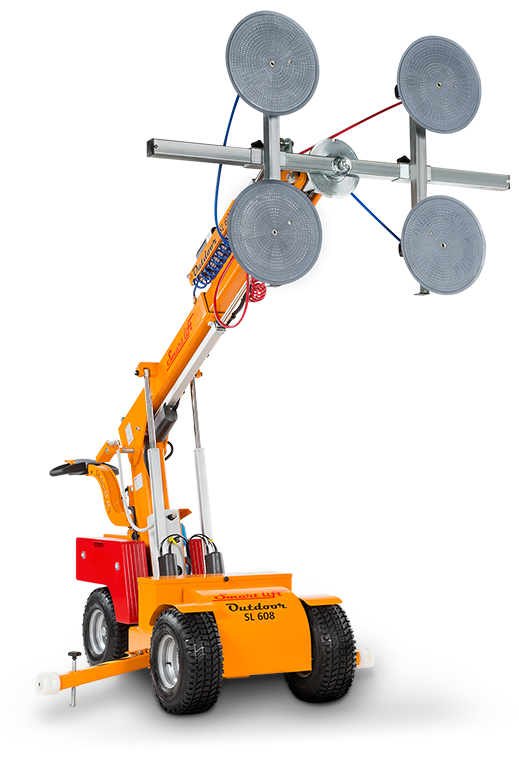

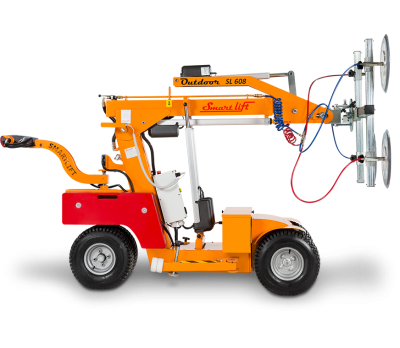

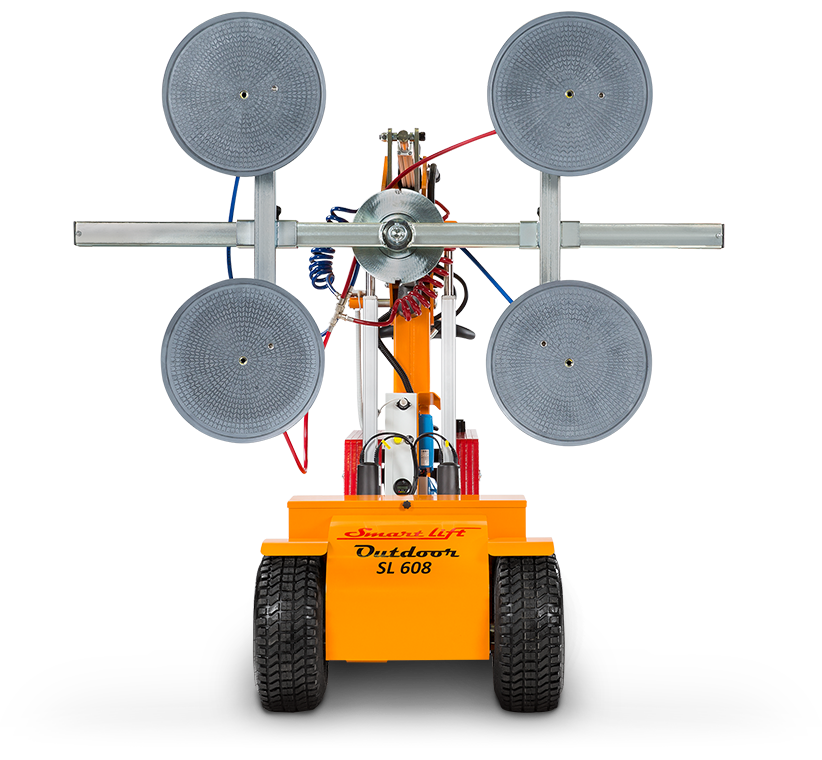

The second most powerful SmartLift® machine in the line, the 608 Outdoor High Lifter was designed with the purpose of lifting heavier pieces of glass up to three layers thick. These self-driven machines are perfect for working outdoors with extra-heavy materials.
The SmartLift® 608 Outdoor HL is perfect for the largest pieces of glass on construction sites. Designed to work outside, this SmartLift® provides stepless movements across numerous surfaces. The beauty of the 608 Outdoor HL is that it can simultaneously move, hoist, reach, and tilt a glass pane without missing a beat. With standard equipment, this machine can lift windows and glass panes with ease.

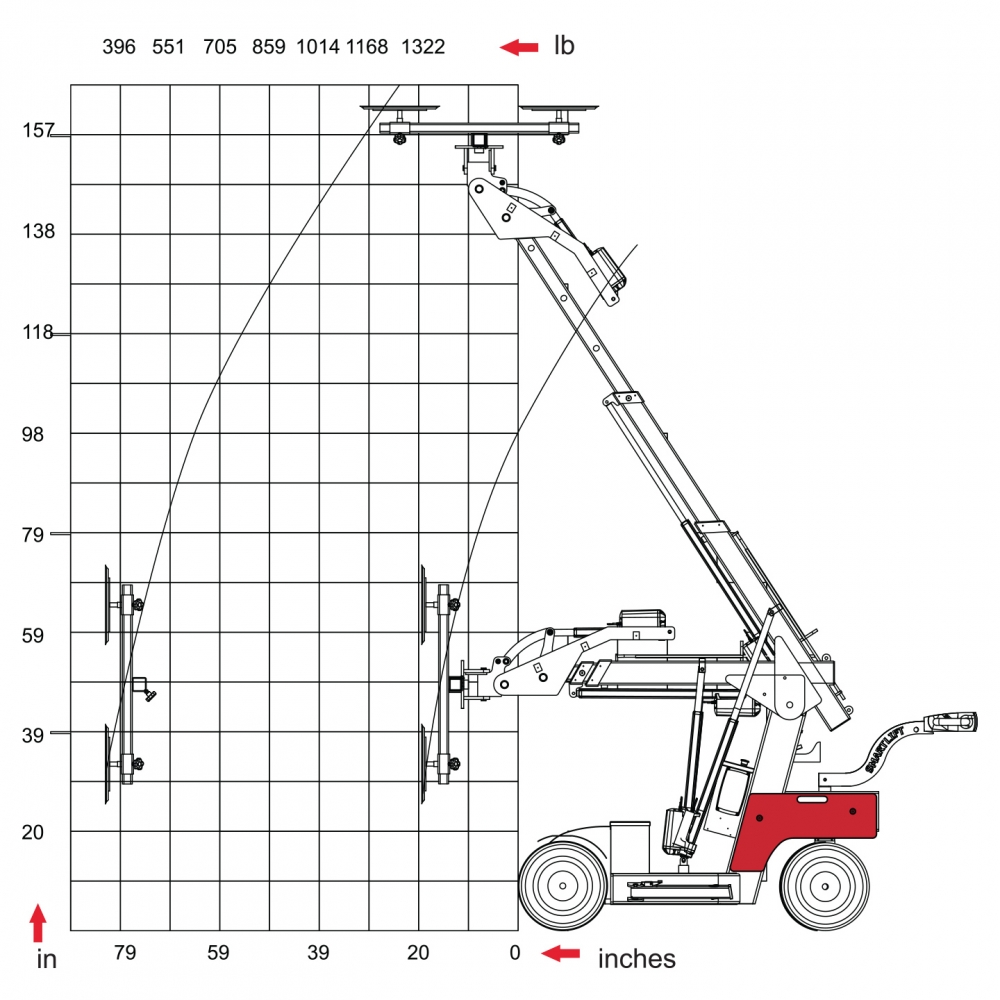

| Lifting Capacity (Arm In/Out) | 1,340 LBS / 330 LBS |
| Lifting Height | 161 IN. |
| Extension of Arm | 27 IN + 35 IN |
| Tip from Horizontal | 40° Back / 100° Forward |
| Side Shift | 4 IN |
| Charging Voltage | 110V |
| Charging Time | Approx. 8 HRS |
| Battery | 2 X 105 Ah |
| Running Period | Up to 20 HRS |
| Front Wheel Drive | 1,200 W DC |
| Suction Pads | 4 x Ø16 IN |
| Curb Weight | 2,050 LBS |
| Class | IP 65 |
SmartLift 608 Outdoor High Lifter User Manual
SmartLift 608 Outdoor High Lift Specifications
SmartLift 608 Rental Agreement
Rates For Rentals Only
| PRODUCT | SKU | WEEKLY | DAILY | 4 WEEK | QTY | |
|---|---|---|---|---|---|---|
| SmartLift 608 High Lifter Glass Handler - please call for pricing | SL608 | (hidden) | (hidden) | (hidden) | Please login to see prices. | |
