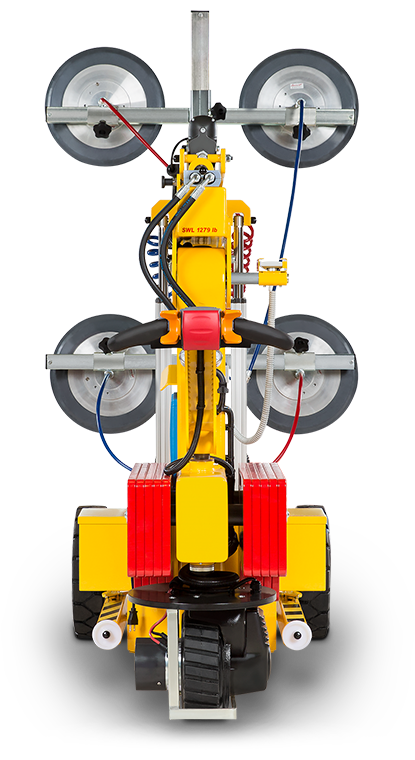

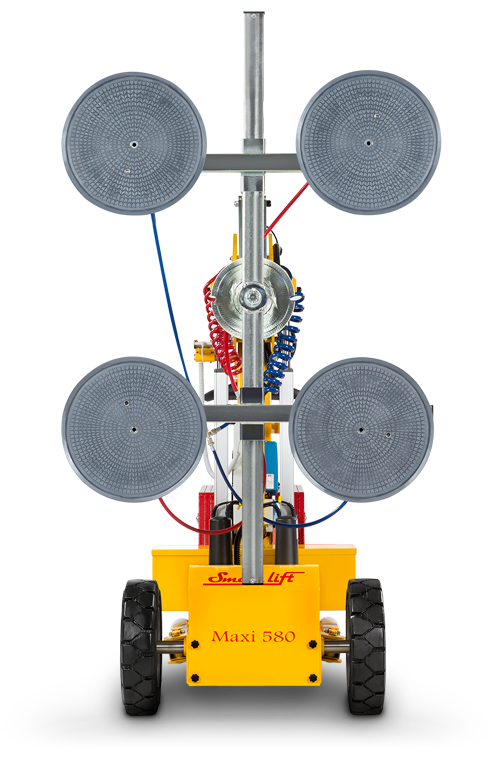

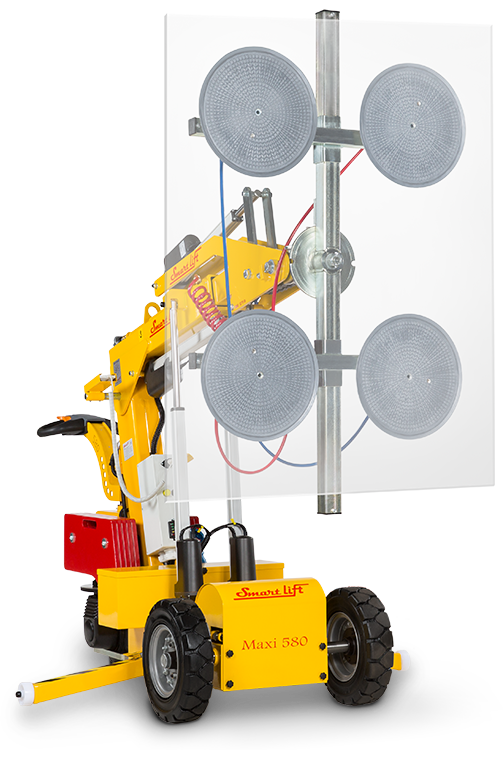

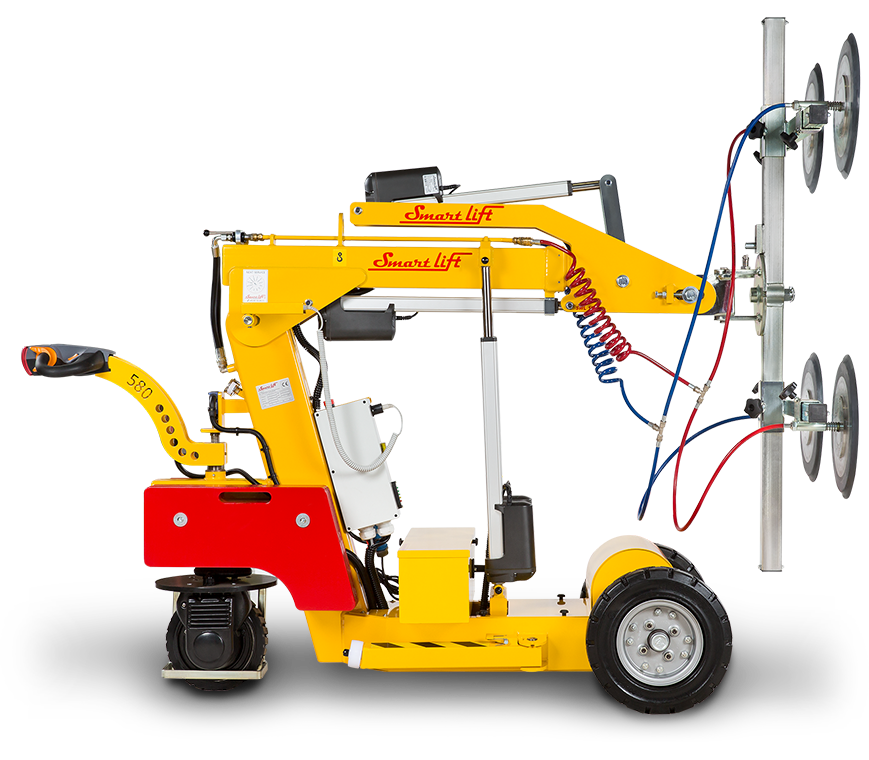

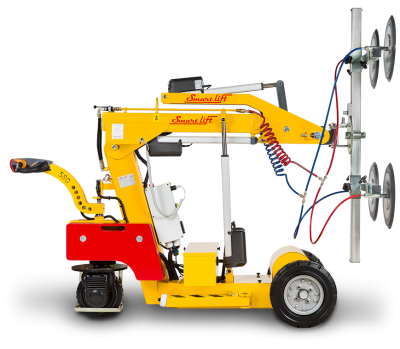

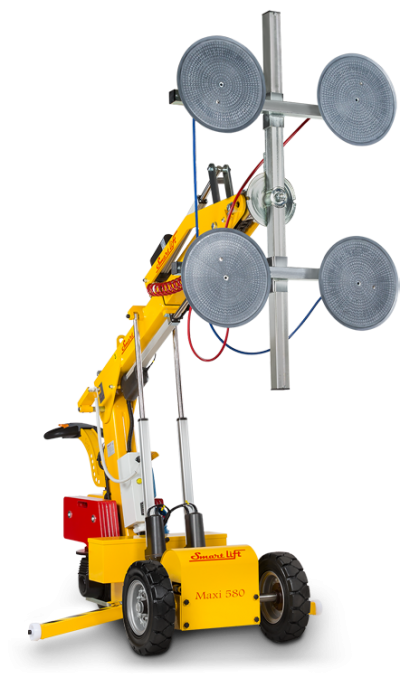

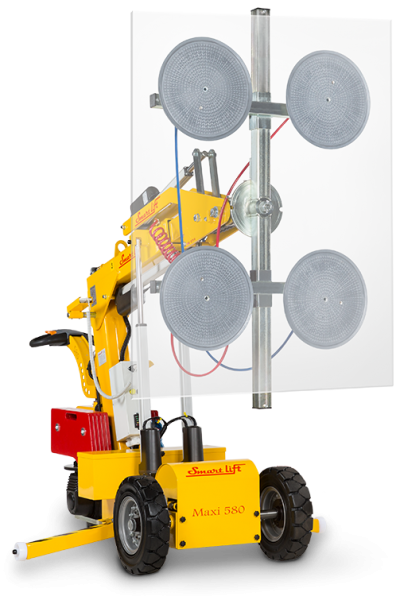

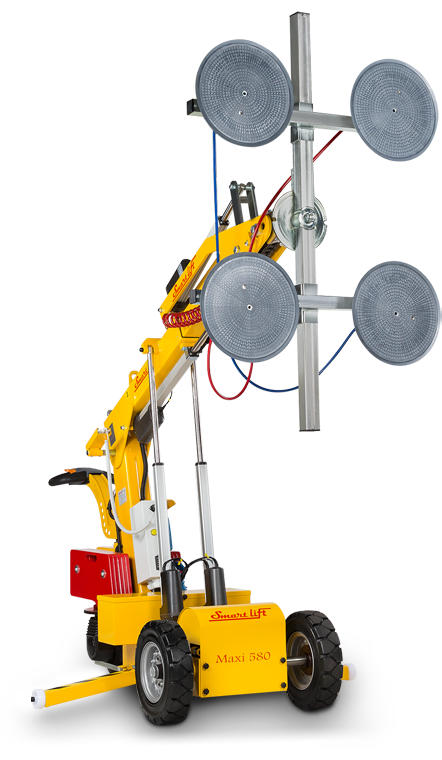

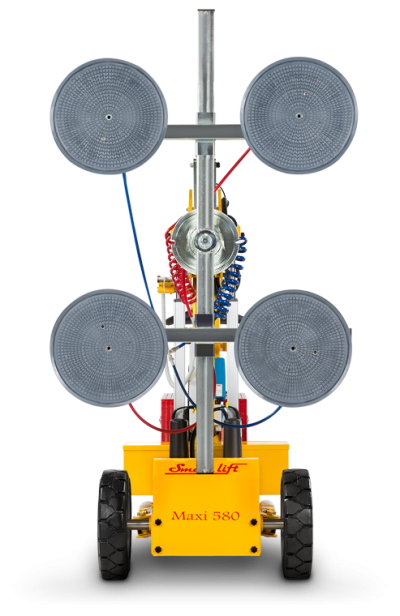

Looking for a heavy-duty indoor glass lifting machine? The SmartLift® 580 Indoor is the machine for the job. With the ability to lift more than a half-ton, this powerful machine can handle even the heaviest glass panes and windows.
With its sizable 1,000-watt engine, rear-wheel drive, and 4 x 16” suction pads supported with a dual-circuit vacuum system, the SmartLift® 580 Indoor is the machine you need to tackle your biggest lifts. Designed to work indoors, it has an extra tight turning radius and is perfect on smooth and level surfaces and ramps. Whether you’re installing heavy fire doors or doing industrial lifting, the 580 Indoor is the glass lifting machine for your job.

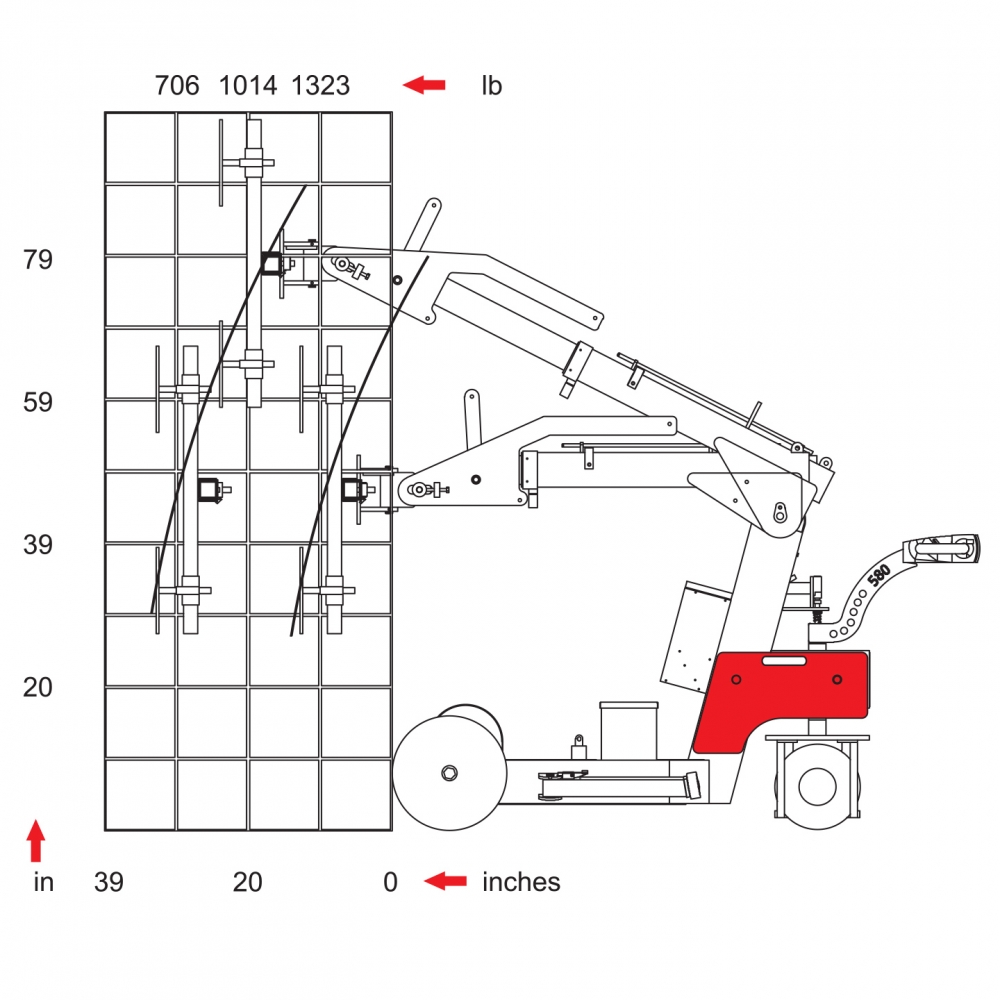

| Lifting cap. arm in/out | 1,278 LBS /617 LBS |
| Lifting Height | 96 IN. |
| Extension of arm | 20 IN |
| Tip from horizontal | 25° Back / 105° Forward |
| Side shift | 4 IN |
| Charging voltage | 110V |
| Charging time | Approx. 8 hrs. |
| Battery | 2 X 80 Ah |
| Running period | Up to 30 HRS |
| Rear wheel drive | 1,000 W DC |
| Break | Electro-magnetic |
| Suction pads | 4 x Ø16 IN |
| Curb weight | 1536 LBS |
SmartLift 580 Indoor Full Specifications
SmartLift 580 Indoor User Manual
SmartLift 580 Rental Agreement
Rates for Rentals Only
