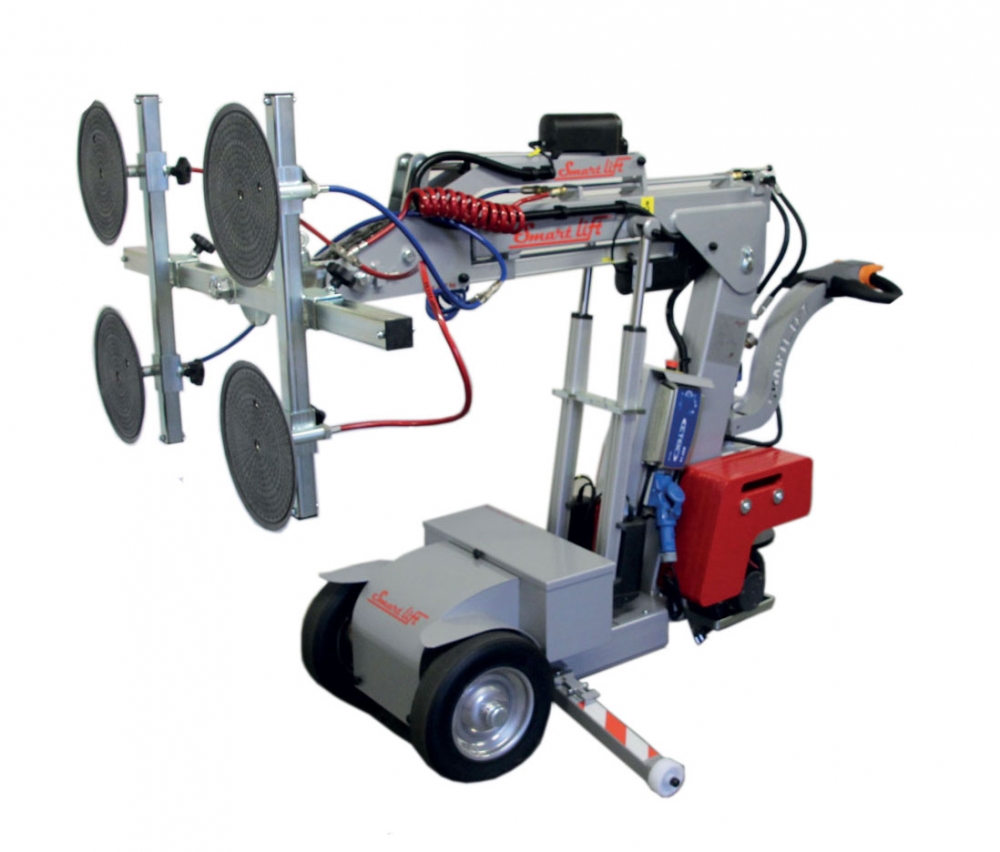

The SL 280 Indoor is a compact lift with more lifting power. The lift can be shifted 10 cm sideways for final precise corrections during installation. Rear wheel drive makes the lift very maneuverable.
Handling heavy sheets of glass weighing up to 280 kg can be back-breaking work. You will find that the SL 280 Standard becomes indispensable. This lifting device has been on the market for some years and it is very popular in Denmark, and internationally.
SL 280 Standard is a compact and flexible device with a tight turning circle. SL 280 Standard has an electric telescopic arm and up to 50 cm reach.
The arm is fitted with 4 x 300 mm diameter suction pads for a very strong grip on your window/element.
The horizontal electric arm tilts a full 50 degrees forwards – and 50 degrees backwards too. This machine can pick up an element from the floor or pallet and move it quickly into place for fitting.
The telescopic arm is fitted with a 180-degree turning head (90 degrees to each side), which allows you to move even very large sheets of glass through narrow passages (doorways, corridors, elevators, etc.)
Smartlift 208 also turns on its own axis so it can be used to manoeuvre even very large sheets of glass in relatively confined spaces.
Smartlift 208 can also be shifted 100 mm sideways, making small adjustments to the position of a glass partition as easy as ABC. Note that the entire process requires no heavy manual lifting at all.
The efficient dual-circuit vacuum system maintains a strong grip on your sheet of glass. You can fit sealing strips before you fit the glass – the lifting device holds the sheet in an ergonomically correct position, of course.
Lifting cap. arm in/out | 460/330 lbs |
Lifting Height | 108 in |
Extension of arm | 20 in |
Tip from horizontal | 54° Back / 53° Forward |
Side shift | - |
Charging voltage | 110V |
Charging time | Approx. 8 hrs. |
Battery (2 x 12V) | 2 x 70 Ah |
Running period | Up to 10 hrs |
Rear-wheel drive | 2 x 1,500 W DC |
Brake | Electro-magnetic |
Suction pads | 4 x Ø10 IN |
Width | 28 in |
Curb weight | 1,060 lbs |
SmartLift 280 Compact Indoor Full Specifications
SmartLift 280 Rental Agreement
Rates for Rentals Only
PRODUCT | SKU | 1 | QTY | |
---|---|---|---|---|
SmartLift 208 Compact | SL208C | (hidden) | Please login to see prices. |
