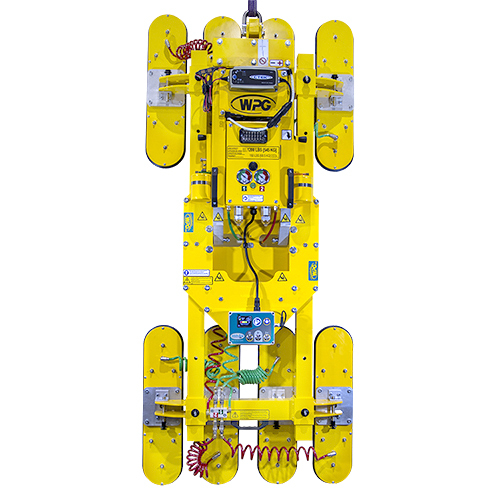

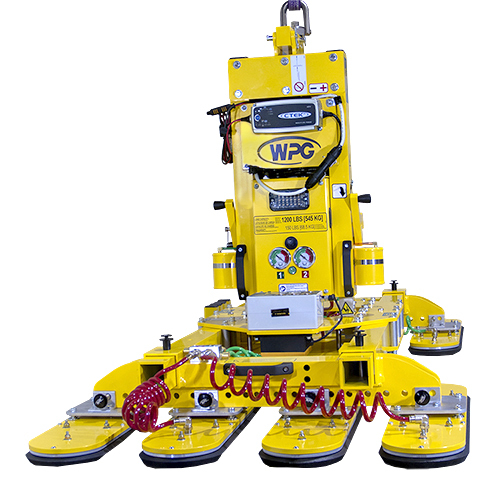

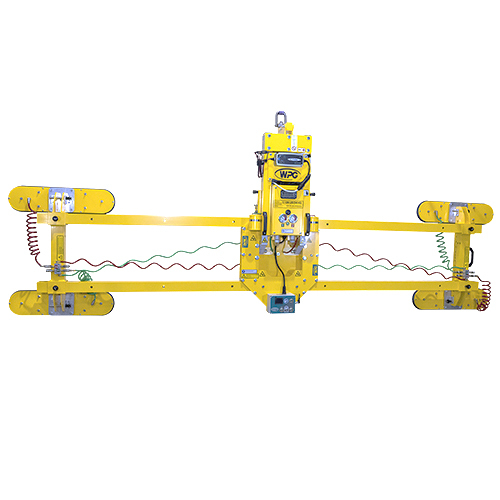

Wood’s Powr-Grip Manual Tilter MTEX8625DC3
Manual Tilter 1200
Can lift insulated metal panels up to 1200 lbs. This flexible vacuum lifter can be configured tool-free to handle either vertically or horizontally oriented loads.
Features
- Sliding Pad Arms and (Re)movable Pad Mounts
- Adjustable Lift Shackle
- Dual Tilt-Release Levers
Technical Specifications
| Maximum Load Capacity | 1200 lbs (545 kg) |
| Standard Pad Spread | Vertical 76” x 34” (193 cm x 86 cm)
Horizontal: 135-3/4” x 34” (345 cm x 86 cm) |
| Number/Size of Pads | 8 with nominal dimensions of 6” x 25” (15 cm x 64 cm) |
| Lifter Weight | 315 lbs (143 kg) |
| Load Movement | Manual, 90°, with automatic latching in flat and upright positions |
| Standard Operating Power | 12 volts DC, 5.5 amps |
| Profile Thickness | 13” (33 cm) (does not include load) |
| Product | SKU | Price | QTY |
|---|---|---|---|
| Rental Rate PER WEEK | MTEX8625DC3 | Hidden | Please login to see prices. |
