Conical Plastic Anchors

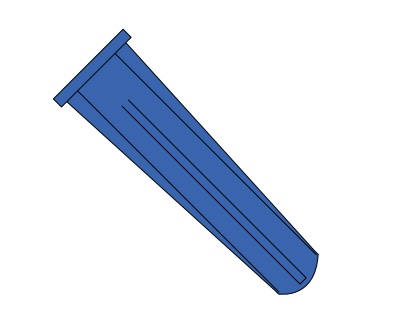

An injection-molded anchor with a flanged opening at the top end and a cone-shaped body that is cupped at the opposite end. It has three horizontal slits cut into the body which extend from the bottom tip up the shank but stop before the flange. There are also three horizontal fins extending from the flange at the top, down the shank but stop before reaching the bottom tip.

Available as:

• 0612PAC: #6-8 screw size, 3/4″ length, 19/64″ flange, 3/16″ drill size, in 4000 psi. concrete: tensile 210, shear 240
• 0814PAC: #8-10 screw size, 7/8″ length, 19/64″ flange, 3/16″ drill size, in 4000 psi. concrete: tensile 440, shear 280
• 1016PAC: #10-12 screw size, 1″ length, 3/8″ flange, 1/4″ drill dize, in 4000 psi. concrete: tensile 550, shear 350
• 1424PAC: #14-16 screw size, 1 1/2″ length, 7/16″ flange, 5/16″ drill dize, in  4000 psi. concrete: tensile 840, shear 530

Sold per 1000.
