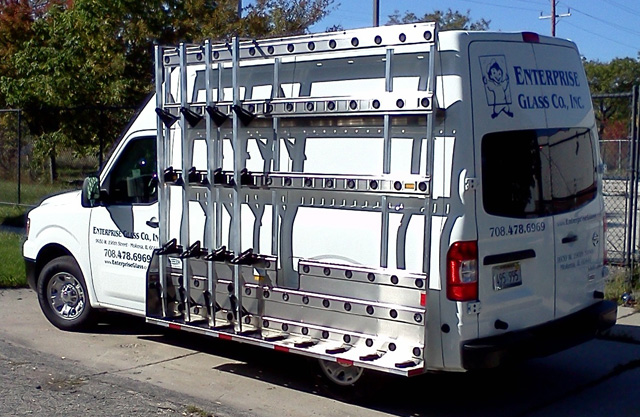

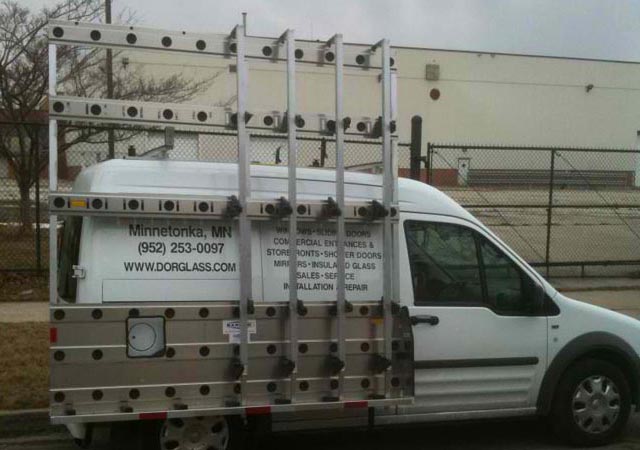

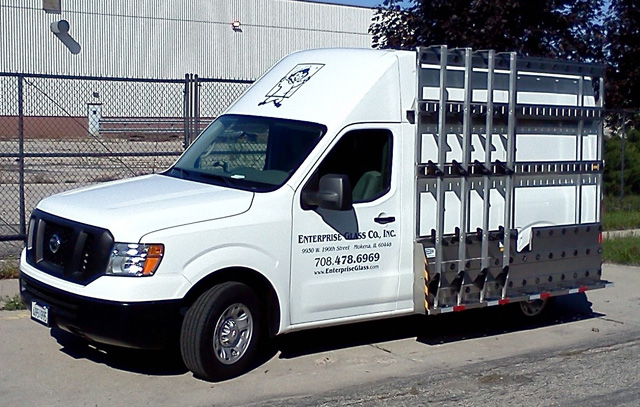

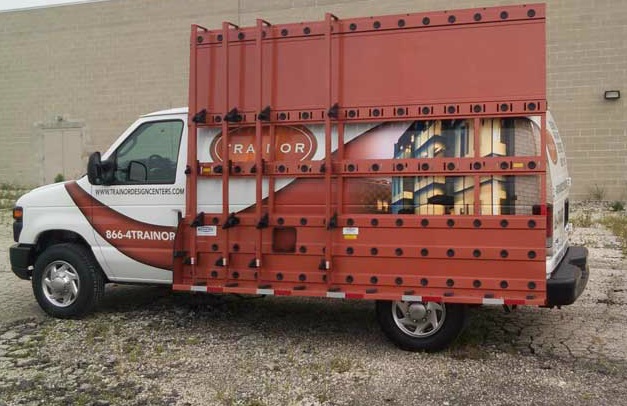

Van Racks

High Tensile Steel Specifications

• All Welded Construction
• Right or Left Outside Glass Racks, 86" Useable Height Standard
• 4 Stakes with Barkleats™ and Hardware Standard
• 1½" Square Tubular Construction
• "B" Horizontal Loadholding Slats
• Barpads® Glass Cushions on 8" Centers
• Neoprene Baseplate Pads on 12" Centers with 3½" or Optional 5" Useable Ledgeboards
• Front Load Stop
• Stake Slots on 12" Centers
• Primed and Finish Painted in Bright White (call for other color options and pricing)
• Optional 30" Gear and Rack Extension
• Optional Upper Sign Panels
• Optional 102-S Stainless Roof Rack
• Crated for Shipment or installed at our Milwaukee Plant

All Aluminum Construction includes the standard specifications PLUS:

• All Welded Construction
• Polished Finish Glass Carriers and Stakes
• Optional 30" Manual Extension

Stainless Steel includes the standard specifications PLUS:

• All Welded Construction
• Lighter than Steel
• Stronger than Steel
• Three Times Stronger than Aluminum
• Minimum Glass Rack Maintenance

All 600 Series Glass Carriers come equipped with 4 Stake-Loc Stakes and a 5" useable ledgeboard with double-row of stake slots. Mounting Choices: bolt through skin of van or bolt to roof rack. Roof Rack mounting requires the purchase of the 102-S Roof Rack, with glass rack sleeves.

Please call 860-291-8177 for quote
