Adjustable Drill Jig

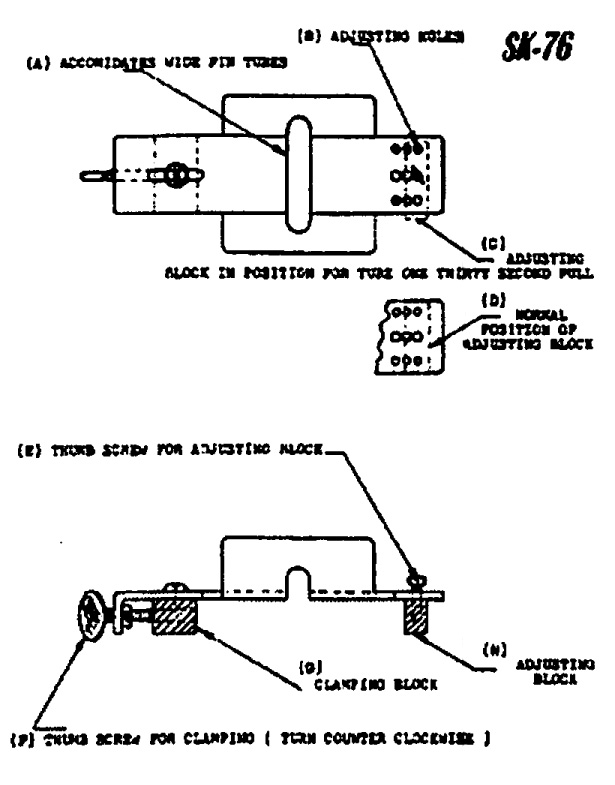

R-A-S Industries, the orginator of the patented drill-jig, and system for extrusion fabrication has now developed an all new adjustable drill jig for store front fabrication. Easily adjustable to 4", 4 1/2", and 5" aluminum extrusions, the new R-A-S drill jig No.'s 75 and 76, and the No. 80 bracket enable you to save time, money, and accuracy with the one set of 2 drill-jigs pictured above - eliminating the three sets (6 jigs) previously required! The method of securing teh jig to the extrusion gives up to 800% more gripping power. THe gripping pad is reversible giving a plus or minus of 1/32" to take care of the difference in extrusion tolerances. The new jigs are formed from 3/16" steel with case hardened drilling holes clearly marked for drilling size. One set of the new adjustable drill-jigs is approximately 1/3 the cost of the three sets previously required.

PRODUCT SKU 1QTY
Adjustable Drill Jig - Horizontal Butt Joint into a Vertical Tube RAS75 (hidden)Please login to see prices.
Adjustable Drill Jig - Header Joint into Vertical Joint RAS76 (hidden)Please login to see prices.
