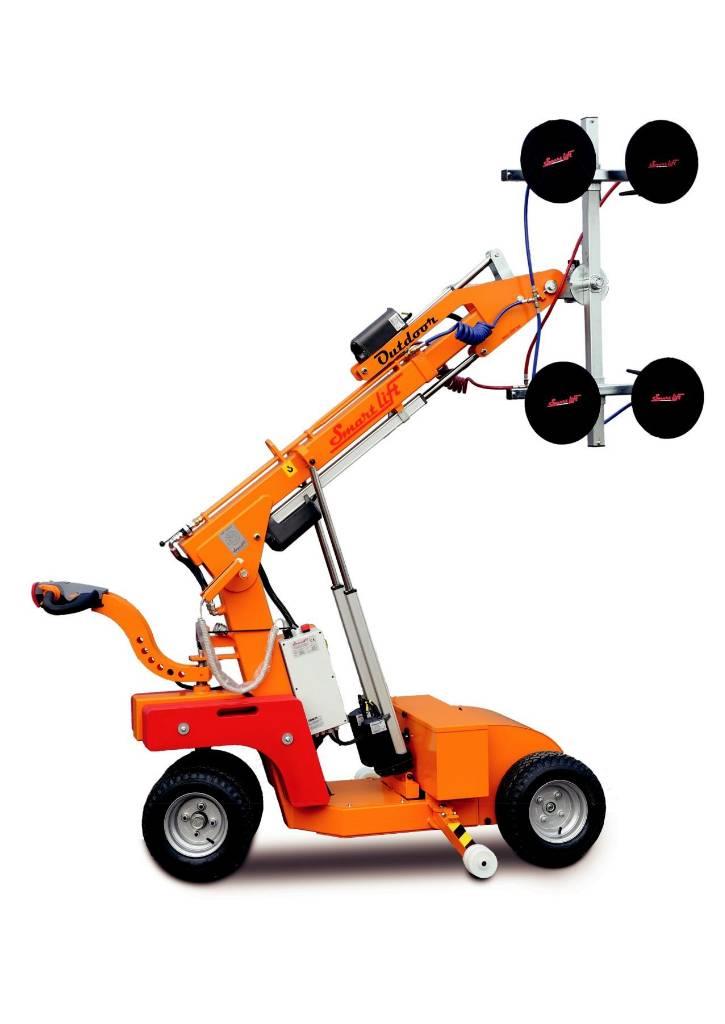

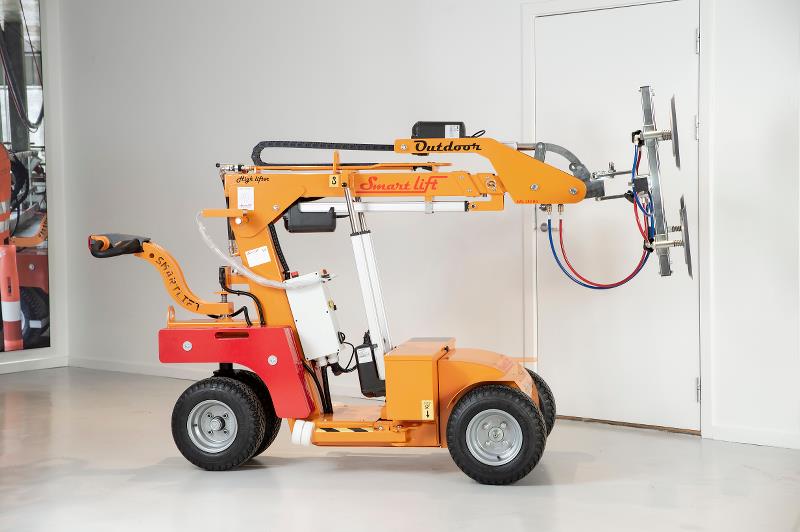

The SL 408 Outdoor is designed for glazing jobs on construction sites where installation is possible from the outside. The modest size of the lift also makes ideal for indoor jobs where room for maneuvering is limited. This glazing robot is an extremely hardy and versatile off-roader.
It has front-wheel drive and the steering axle is fitted with wide twin tires to ensure that the vehicle does not get bogged down. Wide tires also ensure that the lift is stable when driving with a heavy load.
The SL 408 Outdoor has a dual-circuit vacuum system with two vacuum pumps. The lift has two large batteries to ensure operation for a longer period of time. It has a 1200W engine and an electronic braking system.
SL 408 Outdoor | SL 408 Outdoor High Lifter | |
Lifting cap. arm in/out | 840/440 lbs | 840/220 lbs |
Lifting Height | 110 in | 128 in |
Extension of arm | 24 in | 24 + 24 in |
Tip from horizontal | 45° Back / 105° Forward | 45° Back / 90° Forward |
Side shift | 4 in | 4 in |
Charging voltage | 110V | 110V |
Charging time | Approx. 8 hrs. | Approx. 8 hrs. |
Running period | Up to 10 hrs | Up to 10 hrs |
Front-wheel drive | 1200 W AC | 1200 W AC |
Suction pads | 4 x Ø12 IN | 4 x Ø12 IN |
Width | 32 in | 32 in |
Curb weight | 1,390 lbs | 1,500 lbs |
Class | IP 65 | IP 65 |
