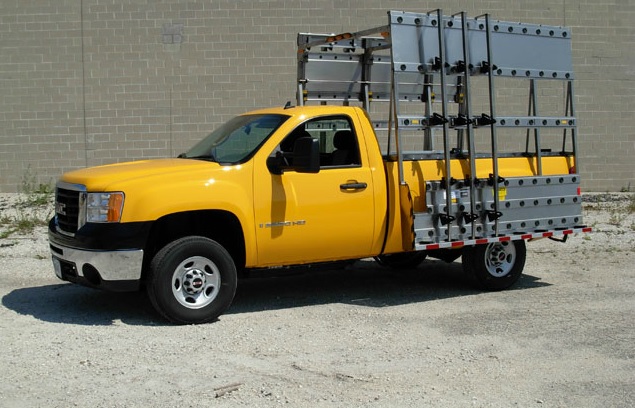

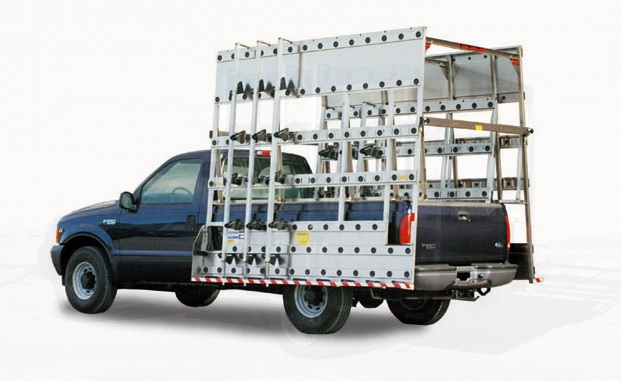

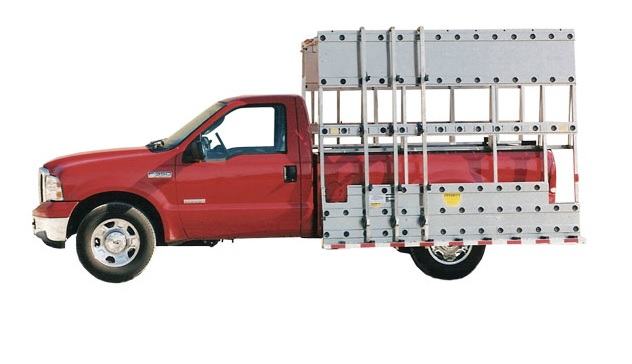

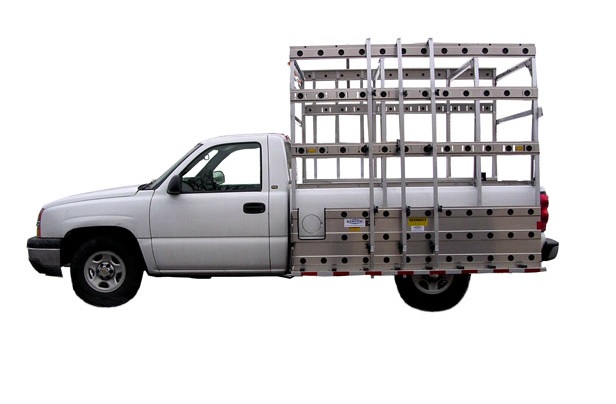

Pick-Up Truck Racks

High Tensile Steel Specifications

• All Welded Construction
• Right and Left Outside Glass Racks, 86" Useable Height Standard
• 6 Stakes with Barkleats™ and Hardware Standard
• 1½" Square Tubular Construction
• "B" Horizontal Loadholding Slats
• Barpads® Glass Cushions on 8" Centers
• Neoprene Baseplate Pads on 12" Centers with 3½" or Optional 5" Useable Ledgeboards
• Optional 30" Gear and Rack Extension
• Front Load Stops
• 9' Long Glass Carriers Have Safety Feature "Cut Outs" for Rear Lights
• Stake Slots on 12" Centers
• Primed and Finish Painted in Bright White (call for other color options and pricing)
• All Necessary Lights and Reflectors
• Optional Upper Sign Panels
• Optional Goalpost or Cantilever-Style Metal Carrier
• Crated for Shipment or installed at our Milwaukee Plant

All Aluminum Constructions include the standard specifications PLUS:

• All Welded Construction
• Polished Finish Glass Carriers and Stakes
• Optional 30" Manual Extension

Stainless Steel includes the standard specifications PLUS:

• All Welded Construction
• Lighter than Steel
• Stronger than Steel
• Three Times Stronger than Aluminum
• Minimum Glass Rack Maintenance

All 700 Series Glass Carriers come equipped with 6 Stake-Loc Stakes and 5"useable ledgeboards with double-row of stake slots. Model 808 comes equipped wtih 3 stakes. Model 1012 comes equipped with 4 stakes.

Please call 860-291-8177 for quote
