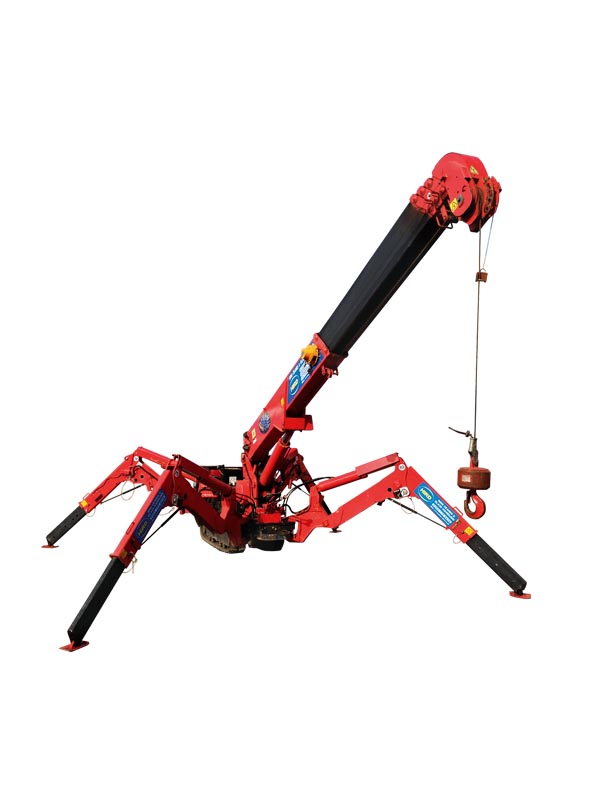

SpyderCrane URW095

The SPYDERCRANE 090 Series Mini Crawler Cranes are the perfect fit for job sites requiring small cranes with a max lifting capacity under 2 ton. These small cranes are generally used in confined areas that other cranes can’t fit.

Offering variable geometry outriggers, the 090 series cranes can be configured around obstacles, set-up on uneven ground, or operated in confined areas such as a hallway or against a wall.

About Spydercrane URW095

Max Capacity 1,990 lbs at 12 ft
Boom Length 28.4 ft
Approximate Tip Height 31 ft
Wire Rope on Drum ~150 ft
Travel Dimensions (W x H x L) 24″ x 56″ x 108″
Approximate Foot Print (Max) 12′6″ x 12’6″
Approximate Foot Print (Min) 8’6″ x 7’6″
Weight of Crane ~4,300 lbs
  • Compact Design – Only 24” Wide When Compacted
  • 360 Degree Continuous Rotation
  • 5-Section Hydraulically Telescoping Boom, with 6-sided Hexagonal Box Construction
  • 6ft Offsettable Jib with Searcher Hook (includes a Single-line Swivel Ball)
  • Anti Two-Block System
  • Automatic Hook Stow System
  • Patented Overturn Protection System
  • 52 Possible Outrigger Positions
  • Over-winding Prevention Device and Alarm
  • Minimum Wire Rope Automatic Stop
  • Onboard Self-diagnostic Computer System
  • Single Point Lift Cylinder
  • Automatic on-demand Throttle Advancement
  • Centrally Located Infinitely Variable Controls
  • Variable Displacement Piston Pump for Multi-function Operations
  • Hydraulic Circuit Pressure Relief Valve
  • Visual Load Indicator
  • Wide Range of Engine Options: Gasoline, Diesel, Propane, Electric, Battery or Combination

Safety Features

  • Anti Two-Block System
  • Automatic Hook Stow System
  • Patented Turnover Protection System allows for up to 52 outrigger configurations
  • Over-winding Prevention Device and Alarm
  • Voice Messaging to Alert Operator if an Unsafe Operation is Being Performed
  • Minimum Wire Rope Automatic Stop
  • Hydraulic Circuit Pressure Relief Valve
  • Visual Load Indicator

SpyderCrane URW095 Spec Sheet

SpyderCrane Blank Certificate of Insurance



PRODUCT SKU WEEKLY DAILY 4 WEEKQTY
Spydercrane URW095 URW095 (hidden) (hidden) (hidden)Please login to see prices.
